Brand Name:
Finisar
Model Number:
FTLF1217P2BTL
Document:
| Model | FTLF1217P2BTL |

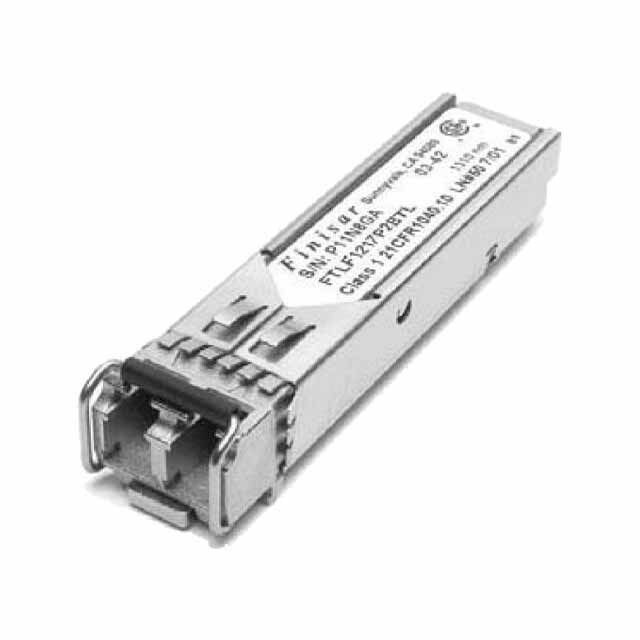

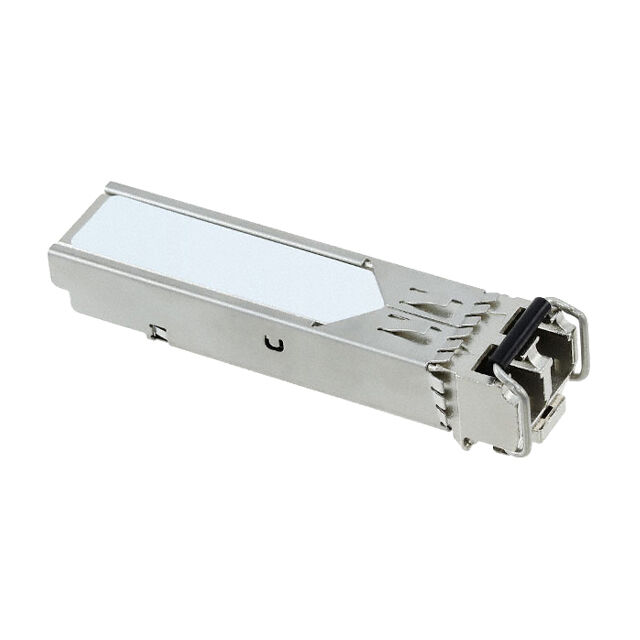

| Description | Finisar FTLF1217P2BTL 100BASE-FX SFP Transceiver |
| Media Type | Multi-Mode Fiber (MMF) |
| TX/RX Wavelength | 1310 nm |
| Wavelength Bandwidth | 100 nm (1260-1360 nm) |
| Maximum Distance | 2 km |
| Data Rate | 100-155 Mbps |
| Temperature Range | Industrial -45°C to +85°C |
| Connectors | Double LC |
| Transmitter Power | -19 dB to -14 dB |
| Receiver Sensitivity | -30 dBm |
| Receiver Overload | -3 dBm |
| Optical Budget | 11 dB |
| Dispersion | 100-110 ps/nm |
| Transmitter Type | FP Laser |
| Receiver Type | PIN photodiode |
| Power Supply | +3.3V single power supply |
| Compliance | CE, Class 1 FDA, IEC60825-1, INF-8074i, RoHS, SFP MSA |
