Name: Finisar Multimode Fiber Sfp FTL410QE4C QSFP+ Optical Transceiver 40Gbps 850nm
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: FTL410QE4C
Price: 94 USD
Availability: InStock

Home > Products > Finisar SFP >

Finisar Multimode Fiber Sfp FTL410QE4C QSFP+ Optical Transceiver 40Gbps 850nm

Finisar multimode fiber sfp

40Gbps multimode fiber sfp

finisar ftl410qe4c Transceiver

Brand Name:

Finisar

Model Number:

FTL410QE4C

Document:

finisar-ftl410qe4c-datashee...et.pdf

Chat Now

Request A Quote

Product Details

Description:

QSFP+ 40G SR4 850nm 150m MPO Parallel MMF Data Center Transceiver For 40GB Ethernet

Condition:

Original New; In Stock

Wavelength:

850 Nm

Mtbf:

≥ 1,000,000 Hours

Operatingtemperature:

0°C To 70°C

Digitaldiagnostics:

Supported

Productname:

Finisar SFP

Voltage:

3.3 V

Compatibility:

Compatible With IEEE 802.3z 1000BASE-SX

Connectortype:

Datarate:

1.25 Gbps

Formfactor:

SFP (Small Form-factor Pluggable)

Rohscompliant:

Yes

Lasertype:

VCSEL

Powerconsumption:

≤ 1 W

Application:

Gigabit Ethernet, Fiber Channel

Transmissiondistance:

550 Meters

Highlight:

Finisar multimode fiber sfp

40Gbps multimode fiber sfp

finisar ftl410qe4c Transceiver

Payment & Shipping Terms

Minimum Order Quantity

Price

$94

Delivery Time

1-3 days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

1000pcs

MSA IEEE802.3ba Finisar Sfp Transceiver Module FTLC1151RDPL

Chat Now

10Gb/S programmed Finisar Sfp Transceiver FTLX8571D3BCL For Multimode Fiber

Chat Now

850nm VCSEL Finisar Sfp Transceiver Module FTLF8526P3BNL 6.1GBase-SR Optical

Chat Now

Single Mode Finisar SFP Transceiver FTLF1324P2BTL-MC 4.25 Gbps Fiber Optic Module

Chat Now

0086-571-86729517

info@hi-network.com

Chat Now

Product Description

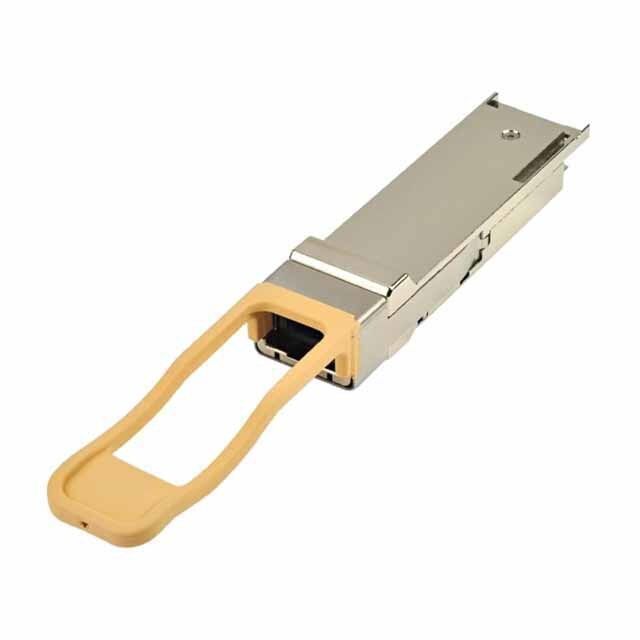

Finisar FTL410QE4C 40GBASE-SR4 QSFP+ Optical Transceiver

The FTL410QE4C is a high-performance parallel 40Gbps Quad Small Form-factor Pluggable (QSFP+) optical transceiver module designed for data center and enterprise networking applications. This module delivers increased port density and significant system cost savings while providing reliable 40Gbps connectivity.

Key Features

4 independent transmit and receive channels at 10Gbps each
Aggregate data rate of 40Gbps over OM3 multi-mode fiber
Reach up to 150 meters with MPO/MTP connector interface
Digital Diagnostic Monitoring (DDM) capabilities
Single +3.3V power supply operation
2-wire serial interface for control and monitoring
Compliant with QSFP+ Multi-Source Agreement (MSA)
Robust design for harsh operating conditions

Quick Specifications

Model	FTL410QE4C
Description	Finisar QSFP+ 40G SR4 850nm 150m MPO Parallel MMF Data Center Transceiver
Optical Power Budget	1.9dB
TX Power Range	-7.6 to +2.4 dBm
RX Power Range	-9.5 to 2.4 dBm
Form Factor	QSFP
TX Wavelength	850nm
Maximum Reach	150m

Product Overview

This full-duplex optical module features four independent transmit and receive channels, each operating at 10Gbps for an aggregate data rate of 40Gbps. The module connects via an optical fiber ribbon cable with MPO/MTP connector, ensuring proper alignment through guide pins in the receptacle. Electrical connectivity is provided through a z-pluggable 38-pin IPASS® connector.

Technical Specifications

Model	FTL410QE4C
Description	Finisar QSFP+ 40G SR4 850nm 150m MPO Parallel MMF Data Center Transceiver
Form Factor	QSFP
TX Wavelength	850nm
Maximum Reach	150m
Cable Type	MMF
Rate Category	40GBase
Interface Type	SR4
DDM Support	Yes
Connector Type	MPO
Optical Power Budget	1.9dB
TX Power Range	-7.6 to +2.4 dBm
RX Power Range	-9.5 to 2.4 dBm

The FTL410QE4C includes comprehensive control features such as Module Present, Reset, Interrupt, and Low Power Mode signals via LVCMOS/LVTTL interfaces. The advanced 2-wire serial interface enables detailed digital diagnostic monitoring and individual channel control, allowing unused channels to be shut down for maximum design flexibility and power efficiency.
