Brand Name:
Finisar
Model Number:

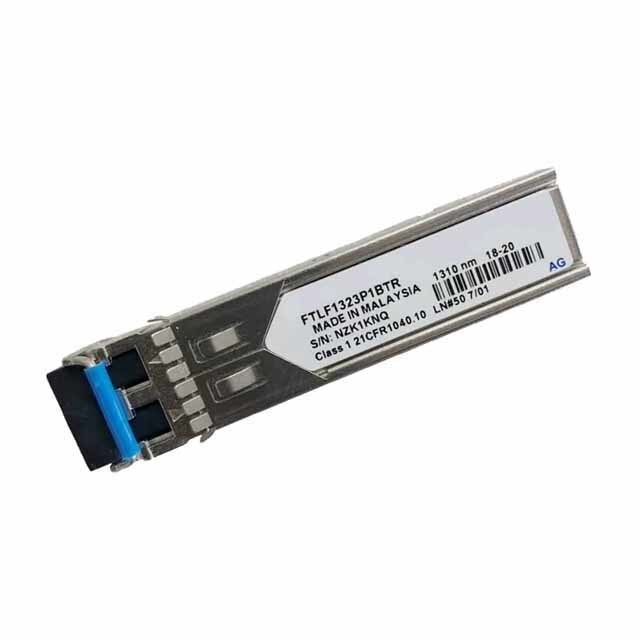

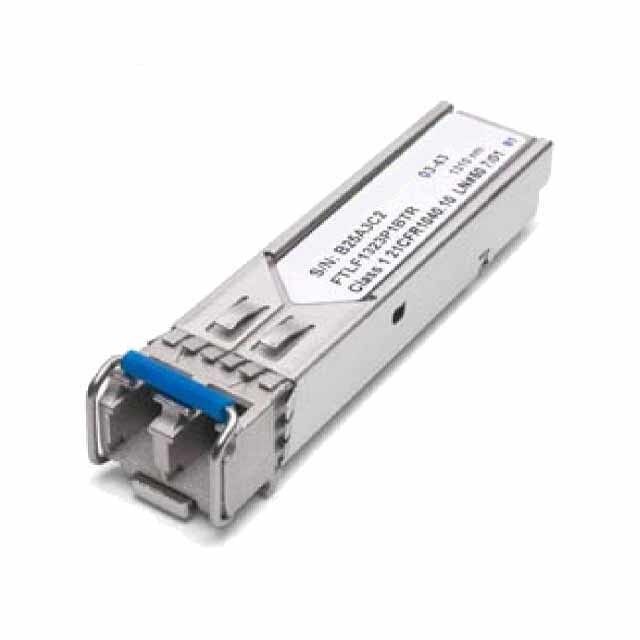

FTLF1323P1BTR
Document:
| Model | FTLF1323P1BTR |
| Description | Original Finisar 155M 1310nm 15km Optical transceiver module |
| TX Wavelength | 1310 nm |
| RX Wavelength | 1310 nm |
| Minimum Optical Budget | 19 dB |
| Maximum Distance | 15km |
| Supported Data Rate | 100-155Mbps |
| Supported Applications | 100M Ethernet (100Mbps), STM-1 (155Mbps) |
| Model | FTLF1323P1BTR |
| Description | Original Finisar 155M 1310nm 15km Optical transceiver module |
| Media Type | Single-Mode Fiber (SMF) |
| TX Wavelength | 1310 nm |
| RX Wavelength | 1310 nm |
| Minimum Optical Budget | 19 dB |
| Maximum Distance | 15km |
| Supported Data Rate | 100-155Mbps |
| Supported Applications | 100M Ethernet (100Mbps), STM-1 (155Mbps) |
| DDM/DOM | Support |
| Temperature Range | Industrial -45°C - +85°C |
| Connectors | Double LC |
| Tx Wavelength Bandwidth | 100 nm (1260-1360 nm) |
| Rx Wavelength Bandwidth | 100 nm (1260-1360 nm) |
| Minimum Transmitting Power | -15 dB |
| Maximum Transmitting Power | -8 dB |
| Receiver Sensitivity | -34 dBm |
| Receiver Overload | -3 dBm |
| Dispersion | 110-200 ps/nm |
| Transmitter Type | FP Laser |
| Receiver Type | PIN photodiode |
| Power | +3.3V single power supply |
| Chipset | MAXIM, MINDSPEED, SEMTECH |
| Compliance | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA |
| Transceiver Type | SFP |
