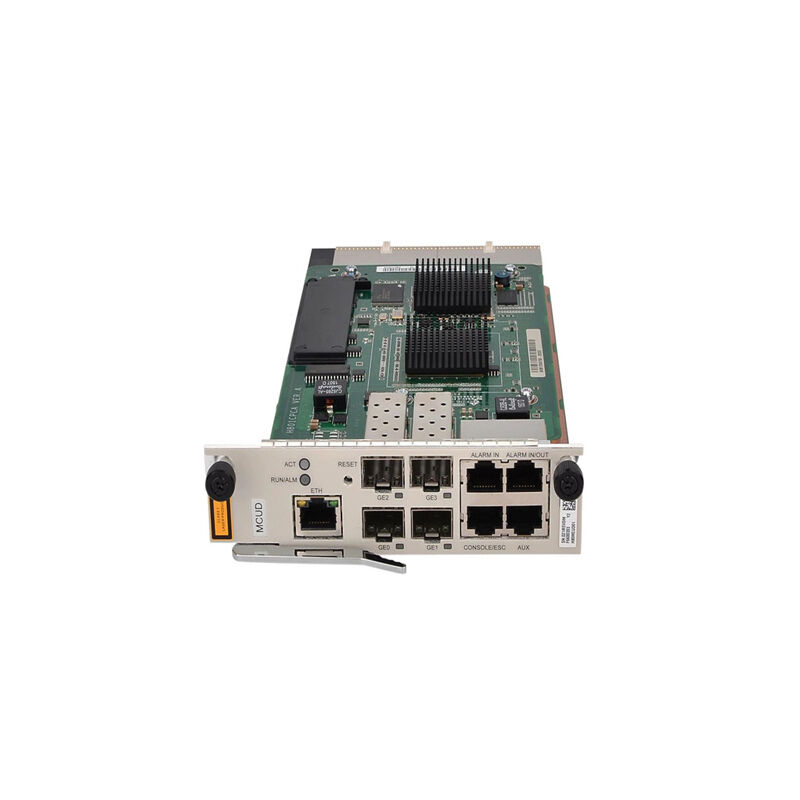

Name: MA5600T MCUD1 Huawei Olt Board Mini Control Unit 256Gbit ODM
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: MCUD1
Price: 510 USD
Availability: InStock

Home > Products > Huawei OLT Board >

MA5600T MCUD1 Huawei Olt Board Mini Control Unit 256Gbit ODM

ODM huawei olt board

256Gbit huawei olt board

MA5600T mcud1 huawei

Place of Origin:

China

Brand Name:

Huawei

Certification:

Model Number:

MCUD1

Document:

huawei-mcud1-datasheet.pdf

Chat Now

Request A Quote

Product Details

Detail:

Huawei SmartAX MA5600T Control Unit Board (GE/10GE Uplink)

Condition:

Original New

Application:

FTTH FTTB FTTX Network

Pon Capacity:

8-32Ports

Maxusersperport:

256 Users

Pon Port Board:

GPBD,GPHD,GPFD,EPSD,EPBD，EPFD

Operatingtemperature:

-5°C To 55°C

Support:

L2/L3 Features

Dc Power Supply:

-38.4V To -72V

Compatibility:

Huawei, ZTE,BDCOM,Raisecom Onus

Control Board:

2 X SCUN

Securityfeatures:

MAC Address Filtering, Port Isolation, Encryption

Max Users:

136 X 10G GPON/10G EPON

Demension:

442mm*268.7mm*88.1mm

Backplanecapacity:

1.28 Tbps

Humidity:

5%~95% (non-condensing)

Chassis:

Highlight:

ODM huawei olt board

256Gbit huawei olt board

MA5600T mcud1 huawei

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$510

Packaging Details

Box

Delivery Time

3-5 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

100 pcs

Huawei EA5801E-GP16 Optical Line Terminal with 16 GPON ports 10GE/GE upstream ports and RS-232 serial port for FTTH network construction

Chat Now

Huawei MA5603T OLT Optical Line Terminal with 6U 10GPON and 1.5Tbit/s Backplane Capacity

Chat Now

Huawei SmartAX MA5800-X2 (AC/ DC Supply) with 40G capacity Original New

Chat Now

Huawei SmartAX EA5801 OLT with 4 x G-PON and GPON Combo AC Power Supply Compact Design for Rapid Deployment

Chat Now

86-180-5715-6223

info@hi-network.com

Chat Now

Product Description

Huawei MCUD1 MA5600T Control Boards

Overview

The H801MCUD1 board is an integrated optical-copper mini control unit board that serves as the core for system control and service switching and aggregation, specifically designed for the MA5608T subrack.

Quick Specification

Model	H801MCUD1
LAN Switch	24 x GE + 4 x 10GE
Switching Capacity	• 128 Gbit/s (active/standby mode) • 256 Gbit/s (load sharing mode)
Bandwidth per Slot	• 10 Gbit/s (active/standby mode) • 20 Gbit/s (load sharing mode)
MAC Address Table	32768
Access ONT	• Before V800R015C10 version: 2048 • V800R015C10 and later versions: 4096
Multicast User	4096

Product Details

Key Benefits

Supports up to 256 Gbit/s switching capacity
Supports active/standby mode and load sharing mode, doubling processing performance
Supports ISSU, saving upgrade interruption time
Supports synchronization Ethernet, 3-stratum clock and 1588v2

External Interfaces

Management Interfaces

CONSOLE/ESC (RJ-45): CONSOLE: RS-232 serial port; ESC: RS-485 monitoring serial port
ETH (RJ-45): 10/100M Base-T maintenance network port
BITS/TOD (RJ-45): 1 input and 1 output of BITS clock signals. 1 input and 1 output of 1PPS+TOD time signals
ALARM IN/OUT (RJ-45): 7 alarm digital inputs and 1 alarm digital output

Communication Interfaces

GE0, GE1 (2 x SFP GE ports)
10GE0/GE2, 10GE1/GE3 (2 x SFP+ 10GE/GE ports): Used for upstream transmission or cascading

Comparison with Similar Items

Feature	H801MCUD1	H801SCUH
LAN Switch	24 x GE + 4 x 10GE	48 x 10GE
Switching Capacity	• 128 Gbit/s (active/standby mode) • 256 Gbit/s (load sharing mode)	• 960 Gbit/s (active/standby mode) • 1920 Gbit/s (load sharing mode)
Bandwidth per Slot	• 10 Gbit/s (active/standby mode) • 20 Gbit/s (load sharing mode)	• 20 Gbit/s (active/standby mode) • 40 Gbit/s (load sharing mode)
MAC Address Table	32768	131072
Access ONT	• Before V800R015C10 version: 2048 • V800R015C10 and later versions: 4096	16384
