Name: 4x10GE Huawei oLT SCUK Control Board H801SCUK 960Gbit For MA5600T MA5603T
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: SCUK
Price: 109 USD
Availability: InStock

Home > Products > Huawei OLT Board >

4x10GE Huawei oLT SCUK Control Board H801SCUK 960Gbit For MA5600T MA5603T

4x10GE olt huawei 5600

SCUK olt huawei 5600

SCUK olt huawei ma5603t

Place of Origin:

China

Brand Name:

Huawei

Certification:

Model Number:

SCUK

Document:

huawei-scuk-datasheet.pdf

Chat Now

Request A Quote

Product Details

Detail:

Huawei SmartAX MA5600T Super Control Unit Board

Condition:

Original New

Securityfeatures:

MAC Address Filtering, Encryption, Authentication

Main Control Board:

SCUN

Ac Power Support:

100V To 240V

Pon Capacity:

8-32Ports

Model:

MA5800-X7

Size:

Type:

Optical Line Terminal

Powersupply:

Dual AC/DC Redundant Power Supply

Chassis:

Dc Power Supply:

-38.4V To -72V

Pon Board:

XGHD,GPSF

Qosfeatures:

Traffic Shaping, Priority Scheduling

Product Status:

Stock

Application:

FTTH FTTB FTTX Network

Dimensions:

442 Mm X 420 Mm X 44 Mm

Highlight:

4x10GE olt huawei 5600

SCUK olt huawei 5600

SCUK olt huawei ma5603t

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$109

Packaging Details

Box

Delivery Time

3-5 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

100 pcs

Huawei EA5801E-GP16 Optical Line Terminal with 16 GPON ports 10GE/GE upstream ports and RS-232 serial port for FTTH network construction

Chat Now

Huawei MA5603T OLT Optical Line Terminal with 6U 10GPON and 1.5Tbit/s Backplane Capacity

Chat Now

Huawei SmartAX MA5800-X2 (AC/ DC Supply) with 40G capacity Original New

Chat Now

Huawei SmartAX EA5801 OLT with 4 x G-PON and GPON Combo AC Power Supply Compact Design for Rapid Deployment

Chat Now

86-180-5715-6223

info@hi-network.com

Chat Now

Product Description

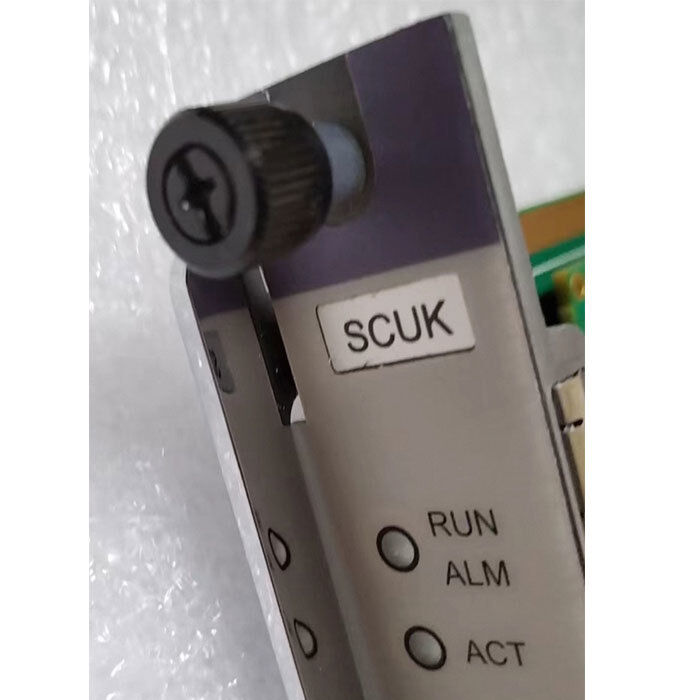

Huawei SCUK MA5600T Control Boards

Overview

The H801SCUK board is an integrated optical-copper super control unit board that serves as the core component for system control and service switching and aggregation, designed specifically for MA5600T/MA5603T subracks.

Quick Specification

Model	H801SCUK
LAN Switch	24 x GE + 4 x 10GE
Switching Capacity	• 480 Gbit/s (active/standby mode) • 960 Gbit/s (load sharing mode)
Bandwidth per Slot	• 10 Gbit/s (active/standby mode) • 20 Gbit/s (load sharing mode)
MAC Address Table	32768
Access ONT	8192
Multicast User	8192

Product Details

Key Benefits

Supports integrated optical copper access for GPON, P2P, xDSL, and voice services
Supports up to 960 Gbit/s switching capacity
Supports active/standby mode and load sharing mode, doubling processing performance
Supports ISSU, saving the upgrade interruption time
Supports 1588v2, and 1588 ACR by working together with the H801CKMD daughter board

External Interfaces

Management Interfaces
- CON (RJ-45): RS-232 serial port
- ETH (RJ-45): 10/100M Base-T maintenance network port
- ESC (RJ-45): RS-485 monitoring serial port
Communication Interfaces
- TX0 RX0 to TX3 RX3 (4 x SFP GE ports): Used for upstream transmission or cascading

Comparison with Similar Items

Feature	H801SCUK	H801SCUH
LAN Switch	24 x GE + 4 x 10GE	48 x 10GE
Switching Capacity	• 480 Gbit/s (active/standby mode) • 960 Gbit/s (load sharing mode)	• 960 Gbit/s (active/standby mode) • 1920 Gbit/s (load sharing mode)
Bandwidth per Slot	• 10 Gbit/s (active/standby mode) • 20 Gbit/s (load sharing mode)	• 20 Gbit/s (active/standby mode) • 40 Gbit/s (load sharing mode)
MAC Address Table	32768	131072
Access ONT	8192	16384
