Name: GPBH 8 Port GPON Huawei OLT Board 20Gbit For MA5608T MA5683T
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: GPBH
Price: 79 USD
Availability: InStock

Home > Products > Huawei OLT Board >

GPBH 8 Port GPON Huawei OLT Board 20Gbit For MA5608T MA5683T

GPBH huawei olt board

20Gbit huawei olt board

GPON 8port olt

Place of Origin:

China

Brand Name:

Huawei

Certification:

Model Number:

GPBH

Document:

huawei-gpbh-datasheet.pdf

Chat Now

Request A Quote

Product Details

Detail:

Huawei GPBH 8-port Interface Board GPON OLT MA5608T/MA5683T

Condition:

Original New; In Stock

Port:

32 X GPON/EPON 96 X GE/FE

Powersupply:

Dual AC/DC Redundant Power Supply

Capacity:

Huawei 10G GPON/10G EPON OLT

Pon Module:

B+,C,C+,C++

Item:

Optical Line Terminal

Setup Interface:

English

Application:

FTTx, Broadband Access, Enterprise Network

Pon Capacity:

8-32Ports

Securityfeatures:

MAC Binding, Port Isolation, Encryption

Ac Power Support:

100V To 240V

Pon Board:

XGHD,GPSF

Warranty:

2year

Uplink Interface:

4 *GE (Optical )+2*GE(Electronic)

Maxusersperport:

64 ONUs Per PON Port

Productname:

Huawei OLT

Highlight:

GPBH huawei olt board

20Gbit huawei olt board

GPON 8port olt

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$79

Packaging Details

Box

Delivery Time

3-5 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

100 pcs

Huawei EA5801E-GP16 Optical Line Terminal with 16 GPON ports 10GE/GE upstream ports and RS-232 serial port for FTTH network construction

Chat Now

Huawei MA5603T OLT Optical Line Terminal with 6U 10GPON and 1.5Tbit/s Backplane Capacity

Chat Now

Huawei SmartAX MA5800-X2 (AC/ DC Supply) with 40G capacity Original New

Chat Now

Huawei SmartAX EA5801 OLT with 4 x G-PON and GPON Combo AC Power Supply Compact Design for Rapid Deployment

Chat Now

86-180-5715-6223

info@hi-network.com

Chat Now

Product Description

Huawei GPBH GPON Board with C+ C++ for Huawei OLT MA5608T MA5683T

Overview

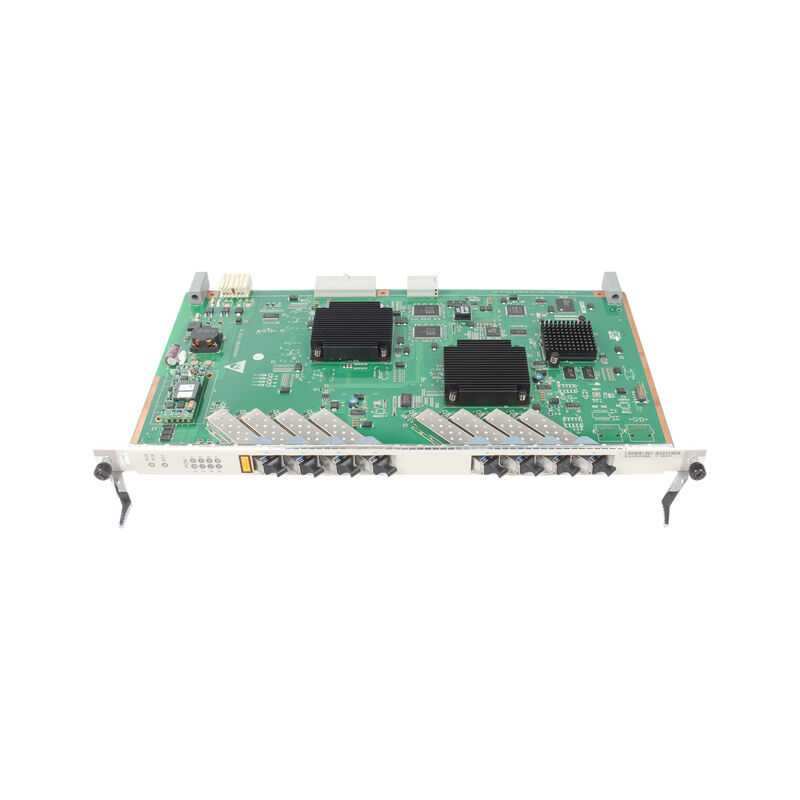

H806GPBH is an 8-port GPON OLT Interface Board designed to work with ONU devices, providing comprehensive GPON access service capabilities.

Quick Specification

Model	H806GPBH
Forwarding capability	20 Gbit/s
T-CONTs per PON port	1024
Service flows per PON board	8184
Maximum frame size	2004 bytes
MAC addresses	16384
Maximum distance difference between two ONUs under the same PON port	40 km from V800R013

Product Details

Key Benefits

High-precision clock and time synchronization: 50-ppb frequency synchronization and 100-ns phase synchronization
High reliability with chip-level type B protection switching (less than 50 ms switching time)
Type C protection dual-homing for geography-level disaster recovery
Real-time rogue ONU detection and isolation for stable service operation
Easy OAM with variable-length OMCI for improved upgrade efficiency
Maximum distance difference of 40 km between ONUs for simplified network planning
1:64 eOTDR support for accurate fault demarcation and quick fault locating

External Interfaces

8 GPON ports with SFP optical modules:

Maximum split ratio:
- Class B+: 1:64
- Class C+/C++: 1:128

Comparison with Similar Items

Model	H806GPBH	H807GPBH
Forwarding capability	20 Gbit/s	20 Gbit/s
T-CONTs per PON port	1024	1024
Service flows per PON board	8184	8184
Maximum frame size	2004 bytes	2004 bytes
4-level HQoS	Not supported	Supported
