Name: 10Gbit Gpon Card Huawei ETHB For OLT SmartAX MA5600T
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: ETHB
Price: 72 USD
Availability: InStock

Home > Products > Huawei OLT Board >

10Gbit Gpon Card Huawei ETHB For OLT SmartAX MA5600T

10Gbit gpon card huawei

MA5600T gpon card huawei

10Gbit gpfd card

Place of Origin:

China

Brand Name:

Huawei

Certification:

Model Number:

ETHB

Document:

huawei-ETHB-datasheet.pdf

Chat Now

Request A Quote

Product Details

Features:

High Integration, Low Latency, Energy Efficient

Detail:

Huawei SmartAX MA5600T Ethernet Service Access Board

Management Protocols:

SNMP, CLI, Web-based Management

Port Count:

Typically 4 To 16 Ports Per Board

Application:

FTTx, Broadband Access, Enterprise Network

Compatibility:

Compatible With Huawei MA5800 Series OLT Chassis

Dimensions:

Varies By Model, Typically Standard Board Size For Huawei OLT Chassis

Manufacturer:

Huawei

Data Rate:

Up To 10 Gbps Per Port

Power Supply:

AC/DC Power Options

Product Type:

Optical Line Terminal Board

Warranty:

Typically 1 To 3 Years Depending On Purchase Agreement

Operating Temperature:

-5°C To 55°C

Interface Type:

GPON, XG-PON, XGS-PON, EPON

Highlight:

10Gbit gpon card huawei

MA5600T gpon card huawei

10Gbit gpfd card

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

$72

Packaging Details

Box

Delivery Time

3-5 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

100 pcs

Huawei EA5801E-GP16 Optical Line Terminal with 16 GPON ports 10GE/GE upstream ports and RS-232 serial port for FTTH network construction

Chat Now

Huawei MA5603T OLT Optical Line Terminal with 6U 10GPON and 1.5Tbit/s Backplane Capacity

Chat Now

Huawei SmartAX MA5800-X2 (AC/ DC Supply) with 40G capacity Original New

Chat Now

Huawei SmartAX EA5801 OLT with 4 x G-PON and GPON Combo AC Power Supply Compact Design for Rapid Deployment

Chat Now

86-180-5715-6223

info@hi-network.com

Chat Now

Product Description

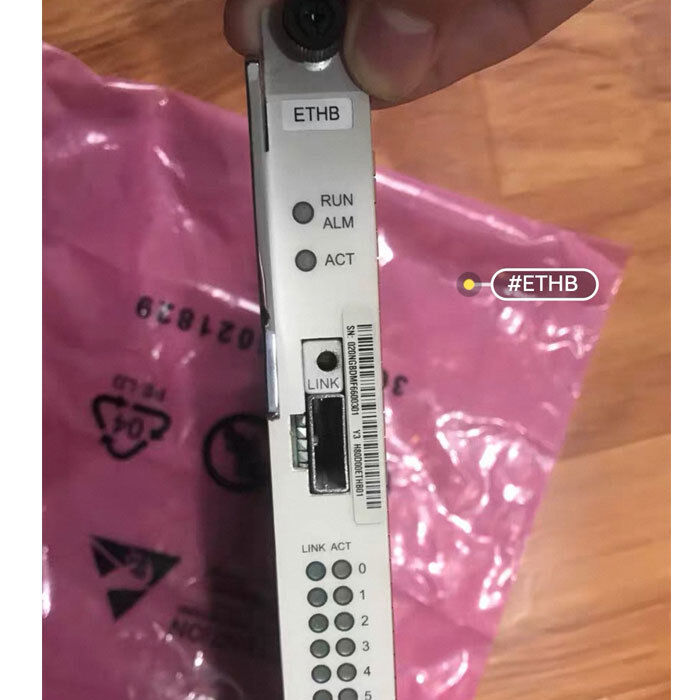

Huawei ETHB 10Gbit GPON Card for OLT SmartAX MA5600T

The H801ETHB board is an Ethernet service access board designed for Huawei OLT SmartAX MA5600T systems. It features optical or electrical module installation to support Ethernet upstream transmission and cascading operations.

Technical Specifications

Specification	Details
Model	H801ETHB
Forwarding Capability	10 Gbit/s
MAC Address Capacity	8192
Maximum Frame Size	• 2052 bytes • 9216 bytes (jumbo frame enabled)
VLAN Forwarding	VLAN+MAC
Ethernet Cascading	Supported
Shaping in Outband Management	Supported
Clock Synchronization	1588ACR
Link Aggregation	Supported at Inter-board and Intra-board
MSTP Ring Network Protection	Supported
Protection Group	Supported
Smart Link	Supported

Key Features & Benefits

Intelligent Management Capabilities

Shaping in outbound management for high-quality data and video services
9216 jumbo frame support, significantly improving transmission efficiency

Operational Efficiency

GE remote extended subrack cascading reduces operational and maintenance costs

High Reliability Features

Inter-board link aggregation
Intra-board link aggregation
MSTP ring network protection
Protection group functionality
Smart link support

External Interfaces

Tx0 Rx0 - Tx7 Rx7: 8×GE optical or electrical ports supporting uplink or cascading operations
Inter-board interconnected port (HiGig port): Connects two H801ETHB boards when using MABC VER.A or MABH VER.B backplane

Product Comparison

Feature	H801SPUF	H801ETHB
Forwarding Capability	40 Gbit/s	10 Gbit/s
MAC Address Capacity	32768	8192
Maximum Frame Size	• 2052 bytes • 9216 bytes (jumbo frame enabled)	• 2052 bytes • 9216 bytes (jumbo frame enabled)
VLAN Forwarding	VLAN+MAC	VLAN+MAC
Shaping in Outband Management	Supported	Supported
