Product Description

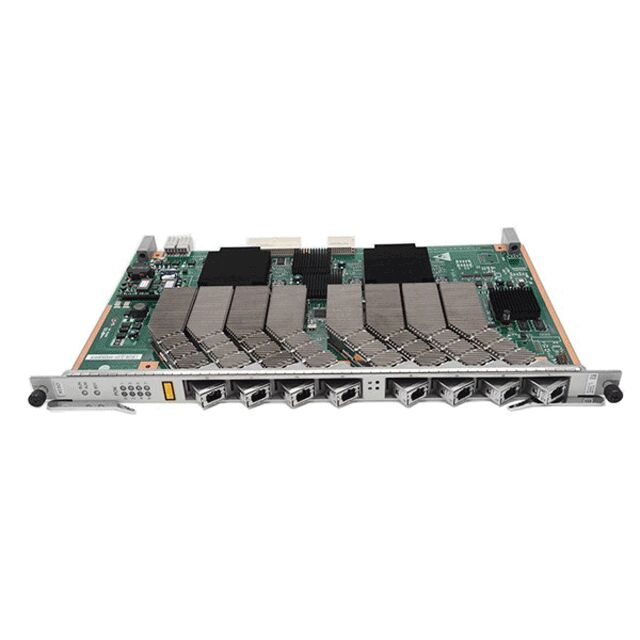

XEBD Huawei 8-port 10G EPON OLT Interface Service Board

Complete solution featuring the XEBD interface service board with PR30/PRX30 optical modules for Huawei OLT platforms.

Product Overview

The H801XEBD/H802XEBD is an 8-port 10G EPON OLT interface service board designed for Huawei OLT equipment. This board comes equipped with PR30/PRX30 10G EPON OLT optical modules and is compatible with Huawei MA5608T, MA5683T, and MA5680T OLT systems.

Condition: REMOVE FROM THE MACHINE

Technical Specifications

Specification	Value
Port Configuration	8 ports 10G EPON
Split Ratio	1:256
Transmit Speed	10.3125Gbit/s, 1.25Gbit/s
Receive Speed	1.25Gbit/s
Interface Type	SC/PC
Optical Module Overload Power	-9.38dBm

Key Features

High-performance 10G EPON interface card for Huawei OLT systems
Supports up to 8×256 10G EPON subscribers maximum capacity
Provides 10G EPON service access from ONT devices
Compatible with Huawei MA5608T, MA5683T, and MA5680T OLT platforms
Includes PR30/PRX30 10G EPON OLT optical modules

Application

This interface board is designed for telecommunications service providers and network operators deploying high-speed 10G EPON fiber optic networks, enabling efficient service delivery to multiple subscribers through Huawei OLT infrastructure.
