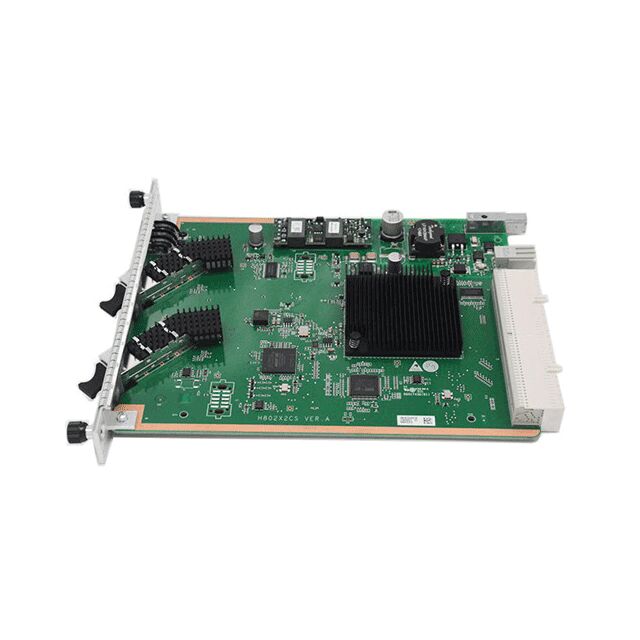

Name: Huawei XEHD 10G EPON Interface Board with 40 km Maximum Differential Fibre Distance and 16368 Service Flows for MA5800
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: XEHD
Price: 295 USD
Availability: InStock

Home > Products > Huawei OLT Board >

Huawei XEHD 10G EPON Interface Board with 40 km Maximum Differential Fibre Distance and 16368 Service Flows for MA5800

10G EPON Interface Board

40 km Maximum Differential Fibre Distance Service Board

16368 Service Flows Huawei XEHD Board

Place of Origin:

China

Brand Name:

Huawei

Certification:

Model Number:

XEHD

Document:

huawei-xehd-datasheet.pdf

Chat Now

Request A Quote

Product Details

Detail:

Huawei XEHD 10G Service Board Is 8-port 10G EPON Interface Board And Uses With The Optical Terminal Unit To Realize EPON Business Access

Condition:

New; In Stock

Highlight:

10G EPON Interface Board

40 km Maximum Differential Fibre Distance Service Board

16368 Service Flows Huawei XEHD Board

Payment & Shipping Terms

Minimum Order Quantity

1 pc

Price

$295

Packaging Details

Box

Delivery Time

3-5 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

100 pcs

Huawei EA5801E-GP16 Optical Line Terminal with 16 GPON ports 10GE/GE upstream ports and RS-232 serial port for FTTH network construction

Chat Now

info@hi-network.com

Chat Now

Product Description

Huawei XEHD 10G 8-port 10G EPON Interface Board for MA5800

Product Overview

The Huawei XEHD 10G Service Board is an 8-port 10G EPON interface board designed for use with optical terminal units to enable high-performance EPON business access solutions.

Technical Specifications

Specification	Details
Board Model	XEHD
Port Quantity	8 XE-PON Ports
Maximum Split Ratio	1:256
Rate Mode	Asymmetric Rate Mode
Forwarding Rate	80 Gbit/s
Maximum Differential Fibre Distance	40 km
Maximum Service Flows Supported	16,368
Working Temperature	-40℃ to +65℃
Maximum Power Consumption	61W
Dimensions (W x D x H)	23 mm x 237 mm x 396 mm
