Place of Origin:
CHINA
Brand Name:
HUAWEI
Certification:
CE
Model Number:

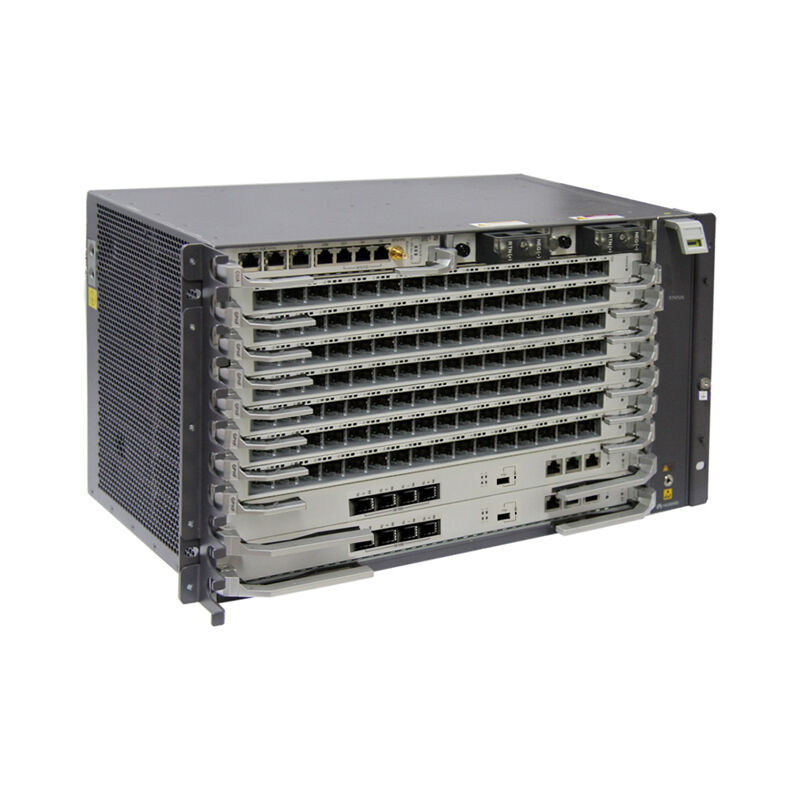

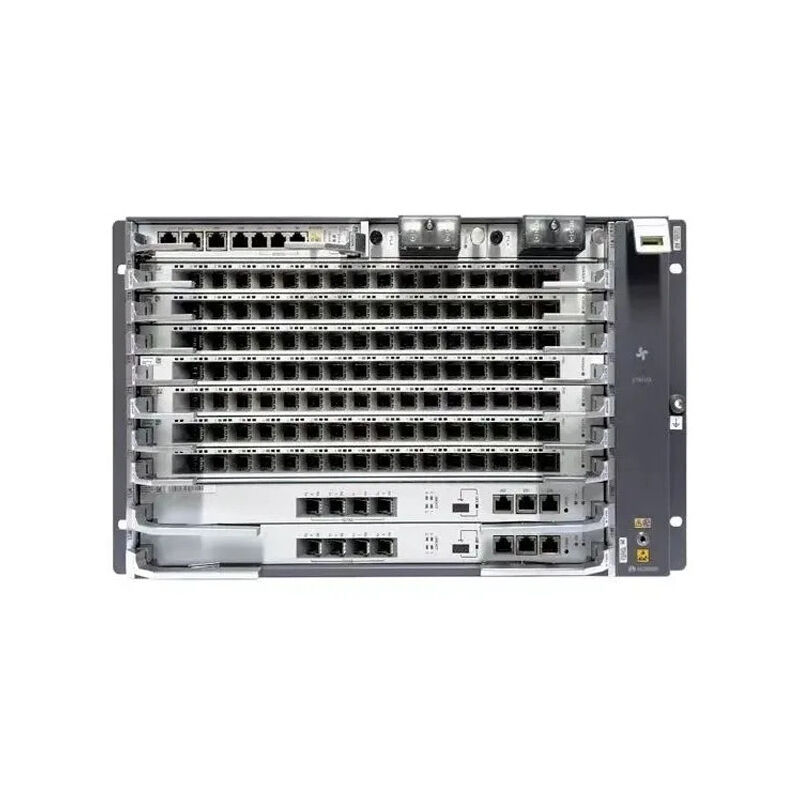

MA5800-X7
Document:
| Slot Type | Slot No. | Total |
|---|---|---|
| Control board (SCU) slot | 8,9 | 2 |
| Power board slot | 10,11 | 1 |
| Universal interface board (GPIO) slot | 0 | 1 |
| Service board slot | 1~7 | 7 |
| Model | Huawei SmartAX MA5800-X7 ETSI |
|---|---|
| Full weight (with IEC mounting ears) | 9.4kg |
| Dimensions (H x W x D) |
Without hanging size: 442.0mm x 268.7mm x 88.1mm With IEC specifications hanging size: 482.6mm x 268.7mm x 88.1mm With ETSI specifications: 535.0mm x 268.7mm x 88.1mm |
| Power supply | DC (dual power backup) turbulence + battery backup |
| Rated voltage |
AC power supply: 110V/220V DC power supply: -48V/-60V |
| Operating voltage range |
DC power supply: -38.4V ~ -72V AC power supply: 100V ~ 240V |
| Maximum input current per channel |
DC power supply: 20A AC power supply: 8A |
| Model Name | Description |
|---|---|
| H901MPSC | 4 GE/10GE upstream transmission ports with load sharing support |
| H901NXED | Enhanced 8-port 10GE upstream interface board supporting 10GE/GE Ethernet upstream transmission |
| H901GPHF | 16 GPON ports for access services |
| H901GPSF | 16 GPON ports for home access services |
| H901XGHD | 8 asymmetric 10G GPON ports for access services |
| H901TWED | 8 symmetric 10G GPON ports for access services |
| H901EDSH | 32-channel E1 upstream board supporting native TDM mode |
| H901OGHK | 48-port aggregated GE/FE optical interface board supporting up to 48 channels of GE/FE |
| H901OXHD | 8-port aggregated 10GE optical interface board supporting GE/10GE Ethernet aggregation |
| H901PISA | -48V DC input |
| H901PISB | One AC power input with battery backup support |
| H901FMSA | Supplies power to fans; controls and monitors the fans |
